What is an IP Address

An IP address (Internet Protocol address) is a unique numerical identifier assigned to every device connected to a network that uses the Internet Protocol for communication. It serves two main functions: identifying the host or network interface and providing the location of the host in the network. Think of it as a digital address for your device, similar to a postal address for mail delivery. IP addresses enable data packets to be routed correctly across networks, ensuring information reaches its intended destination. This guide provides a detailed explanation of IP addresses, their types, structures, and importance in modern networking. Understanding IP addresses is fundamental for anyone involved in IT, cybersecurity, or even basic internet usage. For more on finding your IP, see our guide on how to find IP address.

History of IP Addresses

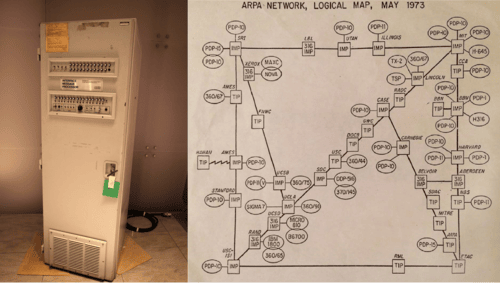

The concept of IP addresses was pioneered by Vint Cerf and Robert Kahn in the 1970s as part of the ARPANET project, funded by the Defense Advanced Research Projects Agency (DARPA) in the United States. Often called the "fathers of the Internet," Cerf and Kahn developed the Transmission Control Protocol/Internet Protocol (TCP/IP) suite to enable reliable communication between diverse computer networks.

The first formal specification for IP (IPv4) was published in September 1981 as RFC 791 by the Internet Engineering Task Force (IETF). However, the protocol's roots trace back to a 1974 paper by Cerf and Kahn titled "A Protocol for Packet Network Intercommunication." The ARPANET, precursor to the modern Internet, fully transitioned to TCP/IP on January 1, 1983—a date known as "Flag Day." This switch marked the operational debut of IP addresses in a large-scale network.

Interesting facts:

• The first IP address block (0.0.0.0/8) was reserved for special uses, but early testing occurred on ARPANET nodes at institutions like Stanford University and the University of California.
• IPv4's 32-bit structure was chosen for simplicity, but with only ~4.3 billion addresses, it led to exhaustion by 2011, prompting the adoption of IPv6.
• Vint Cerf once joked that he thought 4 billion addresses would be "enough for an experiment"—a testament to the Internet's unexpected growth.
• In 1998, IPv6 was introduced to address the limitations of IPv4, offering 340 undecillion unique addresses.

This history underscores the evolution from a U.S. military research project to the global backbone of digital communication. For more on IP versions, see the next section.

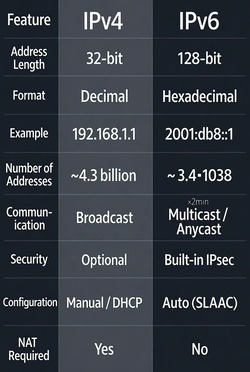

Types of IP Addresses: IPv4 and IPv6

There are two primary versions of IP addresses in use today: IPv4 and IPv6. IPv4, the older standard, uses a 32-bit address format, while IPv6 uses 128 bits to accommodate the growing number of internet-connected devices.

IPv4 Addresses

IPv4, the fourth version of the Internet Protocol, uses a 32-bit address space, allowing for approximately 4.3 billion unique addresses. Addresses are written in dotted decimal notation (e.g., 192.168.1.1), with each octet ranging from 0-255. Due to the explosion of internet devices, IPv4 addresses have become scarce, leading to the use of Network Address Translation (NAT) and the transition to IPv6. For technical details, refer to RFC 791.

Example: 192.168.0.1

Interesting fact: The last major IPv4 block was allocated in 2011, accelerating IPv6 adoption.

IPv6 Addresses

IPv6, designed to replace IPv4, uses a 128-bit address space, providing an astronomically large number of addresses (about 3.4 × 10^38). Addresses are represented in hexadecimal with eight groups separated by colons (e.g., 2001:0db8:85a3:0000:0000:8a2e:0370:7334), and can be shortened using zero compression. IPv6 improves routing efficiency, supports auto-configuration, and includes mandatory IPsec for security. See RFC 8200 for specifications.

Example: 2001:db8::ff00:42:8329

Interesting fact: If IPv6 addresses were distributed evenly, there would be about 5 × 10^28 addresses per person on Earth.

Public vs Private IP Addresses

IP addresses are categorized as public or private based on their visibility and usage scope. This distinction helps conserve the limited IPv4 address space and enhances network security.

Public IP Addresses

Public IP addresses are globally unique and routable over the internet. They are assigned by Internet Service Providers (ISPs) or Regional Internet Registries (RIRs). Public IPs can be static (unchanging, ideal for servers) or dynamic (assigned via DHCP, common for home users). To find your public IP, use our What is My IP Address tool. Interesting fact: Geolocation services use public IPs to approximate device locations, enabling region-specific content.

Private IP Addresses

Private IP addresses are reserved for internal network use and are not routable on the public internet. Defined in RFC 1918, they allow organizations to create large networks without consuming public addresses. Common ranges:

Private IPs rely on NAT to communicate externally. Interesting fact: The 127.0.0.0/8 range is reserved for loopback addresses (e.g., 127.0.0.1), used for testing on the local machine.

How IP Addresses Work in Networking

IP addresses operate at the network layer (Layer 3) of the OSI model, facilitating end-to-end communication across interconnected networks. When data is sent, it's encapsulated into IP packets containing source and destination addresses, headers for routing, and payload.

Routers examine the destination IP to forward packets along the optimal path, using routing tables and protocols like BGP (Border Gateway Protocol) for internet-scale routing. Subnet masks (e.g., /24 for 255.255.255.0) divide networks into subnets for efficient address management.

Key components:

• Default Gateway: The router IP for external traffic.
• DNS: Translates domain names to IPs (e.g., google.com to 172.217.16.174).
• TTL (Time to Live): Prevents infinite loops by decrementing per hop.

Interesting fact: The average internet packet traverses 10-15 hops, with latency affected by distance and congestion. For hands-on learning, try traceroute commands. Advanced reading: Cisco Routing Protocols.

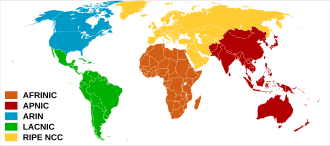

IP Address Allocation: Role of Regional Internet Registries (RIRs)

IP address allocation is managed hierarchically to ensure equitable distribution and efficient utilization. At the top is the Internet Assigned Numbers Authority (IANA), which delegates blocks to five Regional Internet Registries (RIRs). These nonprofit organizations handle allocation within their regions, maintain WHOIS databases, and develop policies through community input.

RIRs play a crucial role in combating IPv4 exhaustion by promoting IPv6 adoption and managing transfers. They also assign Autonomous System Numbers (ASNs) for routing.

• ARIN (American Registry for Internet Numbers): Serves North America and parts of the Caribbean. Manages ~40% of IPv4 addresses. ARIN website.
• LACNIC (Latin American and Caribbean Internet Addresses Registry): Covers 33 countries in Latin America and the Caribbean. Focuses on regional development and IPv6 training. LACNIC website.
• RIPE NCC (Réseaux IP Européens Network Coordination Centre): Oversees Europe, Middle East, and Central Asia (76 countries). Known for open policy processes. RIPE NCC website.
• APNIC (Asia-Pacific Network Information Centre): Manages Asia, Oceania, and Pacific (56 economies). Hosts the largest IPv6 deployments. APNIC website.
• AFRINIC (African Network Information Centre): Serves Africa and Indian Ocean islands (58 economies). Emphasizes capacity building in underserved areas. AFRINIC website.

The RIRs coordinate via the Number Resource Organization (NRO) to align global policies. Interesting fact: Post-IPv4 depletion, a market for address transfers has emerged, with prices reaching $50 per IP in 2023.
